Tooling & Machinery Gallery
Explore our catalog of high-precision solid carbide cutting tools, custom step drills, brazed cutters, and 5-axis CNC grinding facility equipment in Bhosari MIDC, Pune.
.jpg&w=3840&q=75)
Solid Carbide Multi-Flute End Mill
High-speed multi-flute solid carbide end mill designed for high-performance CNC side milling, profiling, and slotting with sub-micron edge sharpness.
.jpg&w=3840&q=75)

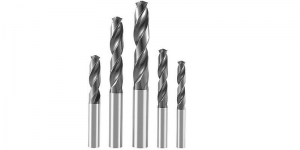

Through-Coolant Carbide Drill
Sub-micron tungsten carbide drill featuring internal spiral coolant channels for efficient heat dissipation and rapid chip evacuation in deep-hole drilling.
.jpg&w=3840&q=75)
Brazed Carbide T-Slot Cutter
Heavy-duty T-slot milling cutter featuring silver-alloy induction brazed carbide tips on a high-tensile alloy steel shank for shock resistance.
.jpg&w=3840&q=75)

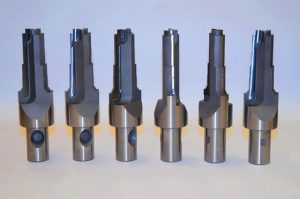

Custom Multi-Step Combination Tool
Bespoke step drill and form tool engineered to perform drilling, counter-boring, and chamfering in a single spindle pass to reduce cycle time.
.jpg&w=3840&q=75)
Precision Solid Carbide Reamer
Micro-tolerance solid carbide reamer with helical flutes designed for supreme hole finish and strict H7 hole diameter limits.
.jpg&w=3840&q=75)
Ball Nose Carbide Profiling End Mill
Full radius ball nose end mill engineered for 3D mold cavity profiling, die contouring, and smooth surface finishing on hardened steels.
.jpg&w=3840&q=75)
Lugged Carbide Hole Milling Tool
Reinforced lugged carbide tool designed for heavy hole enlargement, deep pocket milling, and interrupted metal cuts in industrial castings.
.jpg&w=3840&q=75)
Carbide Roughing End Mill (Wave Profile)
Wave-profile chip breaker rougher end mill engineered for high-volume material removal with reduced cutting forces and chatter dampening.
.jpg&w=3840&q=75)
Micro-Thread Carbide Milling Cutter
Precision CNC thread mill designed for producing internal and external thread profiles without risk of broken tap extraction.
.jpg&w=3840&q=75)
Carbide Dovetail Slotting Cutter
Precision ground dovetail cutter for machining slide-ways, keyways, and angled machine slots with accurate side angles.
.jpg&w=3840&q=75)
Single Flute Router Bit for Non-Ferrous
Polished single flute router bit optimized for fast chip ejection when machining aluminum, copper, brass, and acrylics.
.jpg&w=3840&q=75)
Custom Chamfer & Drill Conduit Tool
Bespoke dual-stage cutter combining primary hole drilling with automatic 45° edge deburring and chamfering.
.jpg&w=3840&q=75)
Brazed Carbide Slitting & Side Cutter
Induction-brazed slitting cutter designed for narrow slot machining, parting off, and precise side face milling.
.jpg&w=3840&q=75)
Tapered Ball Nose Mold Cutter
Graduated taper ball nose end mill engineered specifically for deep draft angles in die casting molds and aerospace blisk milling.
.jpg&w=3840&q=75)
Solid Carbide Spot & Centering Drill
Rigid 90° and 120° spot drill ensuring exact hole centering and preventing drill walking on inclined workpiece surfaces.
.jpg&w=3840&q=75)
Carbide Face Milling Cutter Body
Indexable and tipped face milling tool engineered for flat component facing with low vibration and smooth surface generation.
.jpg&w=3840&q=75)

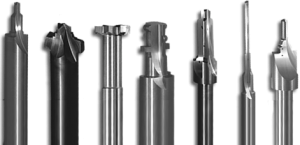

Custom Form & Profile Tooling
Complex profile form cutter ground to exact customer 2D component contours for specialized valve and fitting production.
.jpg&w=3840&q=75)
Extended Reach Deep Hole Carbide Drill
Long shank solid carbide drill designed for deep oil hole drilling and hard-to-reach internal component features.
.jpg&w=3840&q=75)
Lugged Carbide T-Slot Cutter
High-rigidity lugged carbide T-slot cutter with multiple cutting teeth for smooth feed rates on heavy machine tables.
.jpg&w=3840&q=75)
Corner Radius Solid Carbide End Mill
Solid carbide end mill featuring ground corner radii to protect tool tips from chipping under heavy corner engagement.
.jpg&w=3840&q=75)
Brazed Carbide Spot Facing Cutter
Heavy-duty spot facing cutter with braze-on carbide tips engineered for bolt head seat machining on iron and steel castings.
.jpg&w=3840&q=75)
5-Axis CNC Grinding Wheel Pack Setup
ANCA linear motor CNC grinding spindle loaded with multi-stage diamond and CBN wheel packs for precision tool grinding.
.jpg&w=3840&q=75)
100% Optical Inspection & Quality Verification
Quality assurance station featuring optical profile inspection and digital measuring comparators ensuring runout ≤ 0.003mm.
.jpg&w=3840&q=75)
Nano-Coated Custom Tooling Dispatch Batch
Batch of freshly ground, PVD nano-coated solid carbide custom tools undergo final quality check prior to client packaging.
V2 ADVANCED Maxima 5-Axis CNC Grinder
State-of-the-art 5-axis CNC grinding machine engineered for 2mm–20mm carbide tools with sub-micron accuracy.
ANCA FX5 Linear Motor CNC Tool Grinder
ANCA linear motor tool grinder delivering unmatched contour accuracy, thermal stability, and smooth surface finish.
Vision Measuring Systems & Inspection Unit
High-magnification optical profile systems and digital comparators for 100% geometric inspection and flute runout checks.
